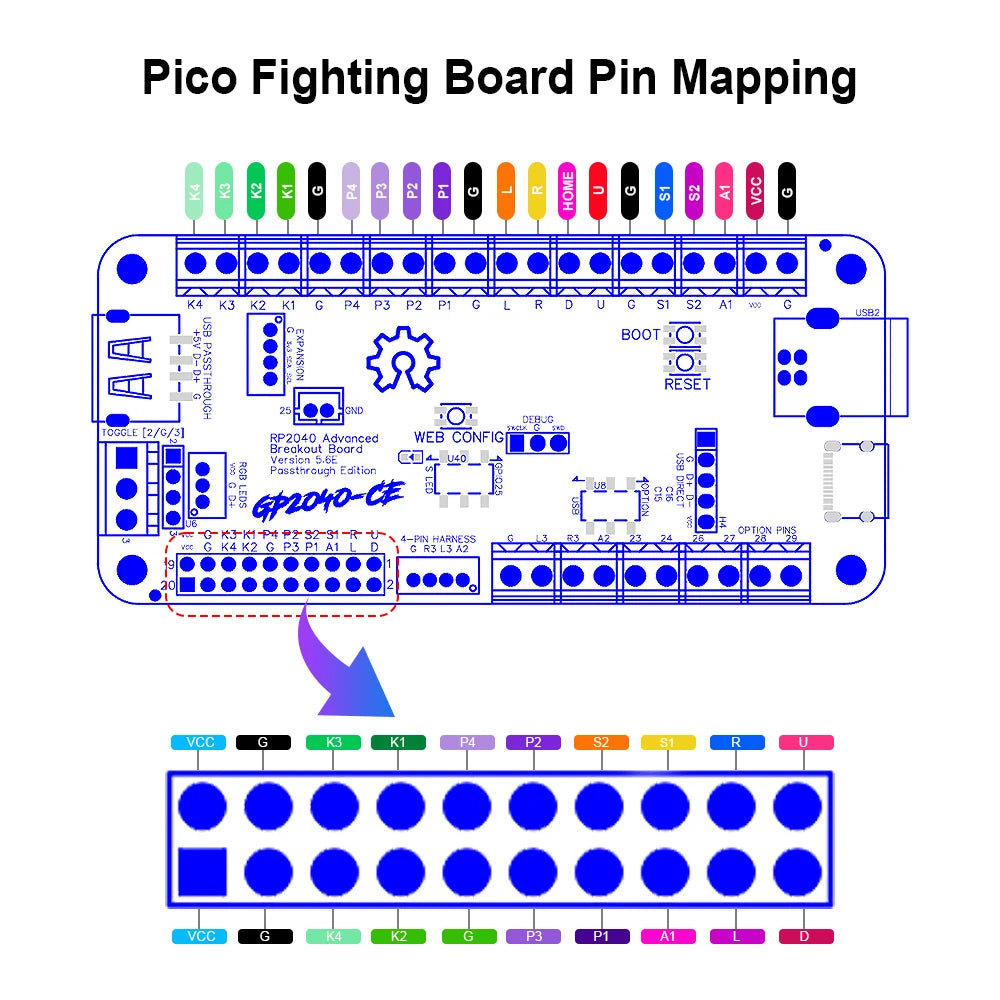

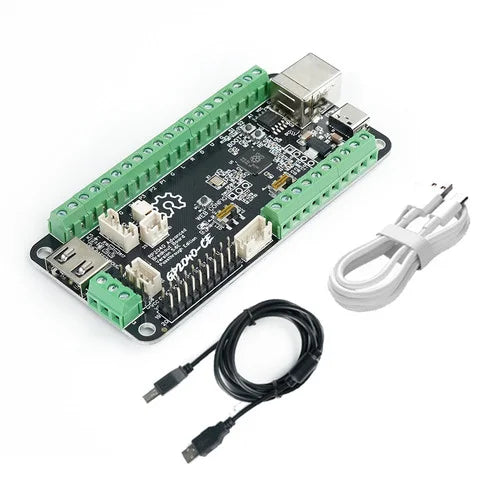

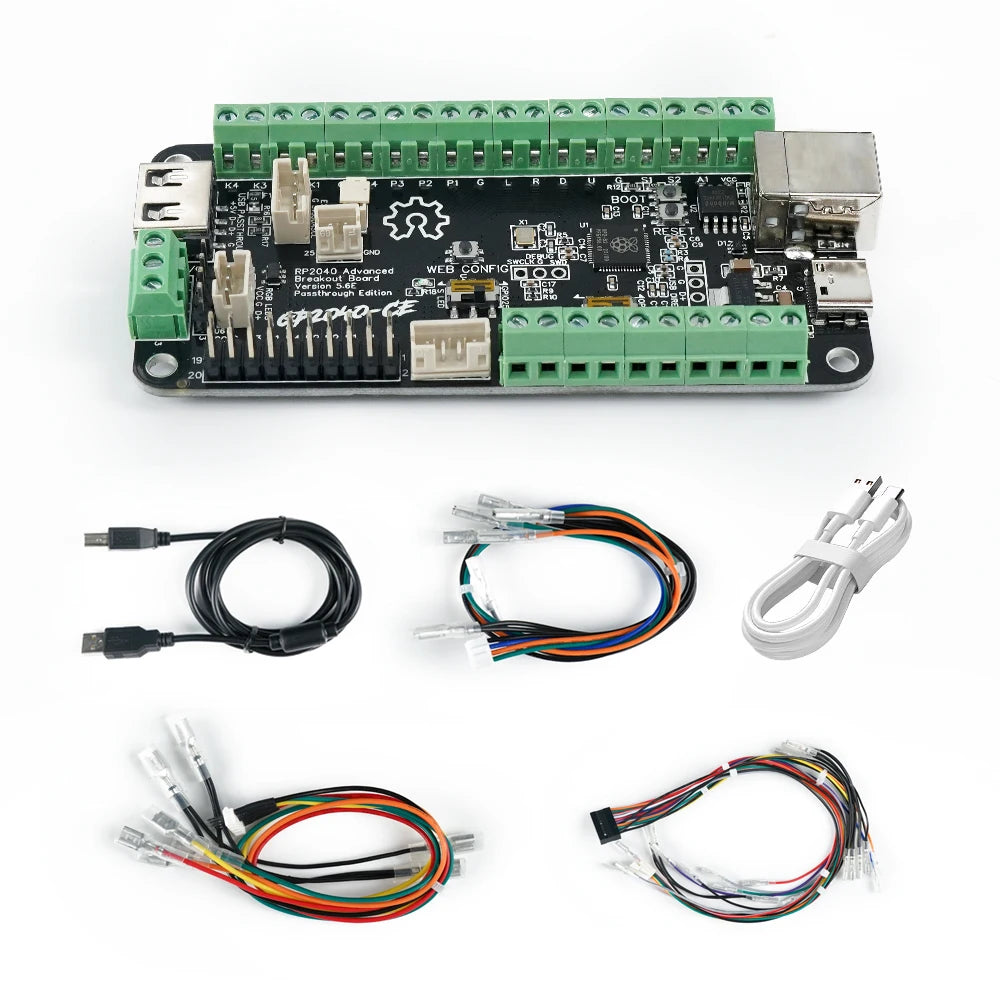

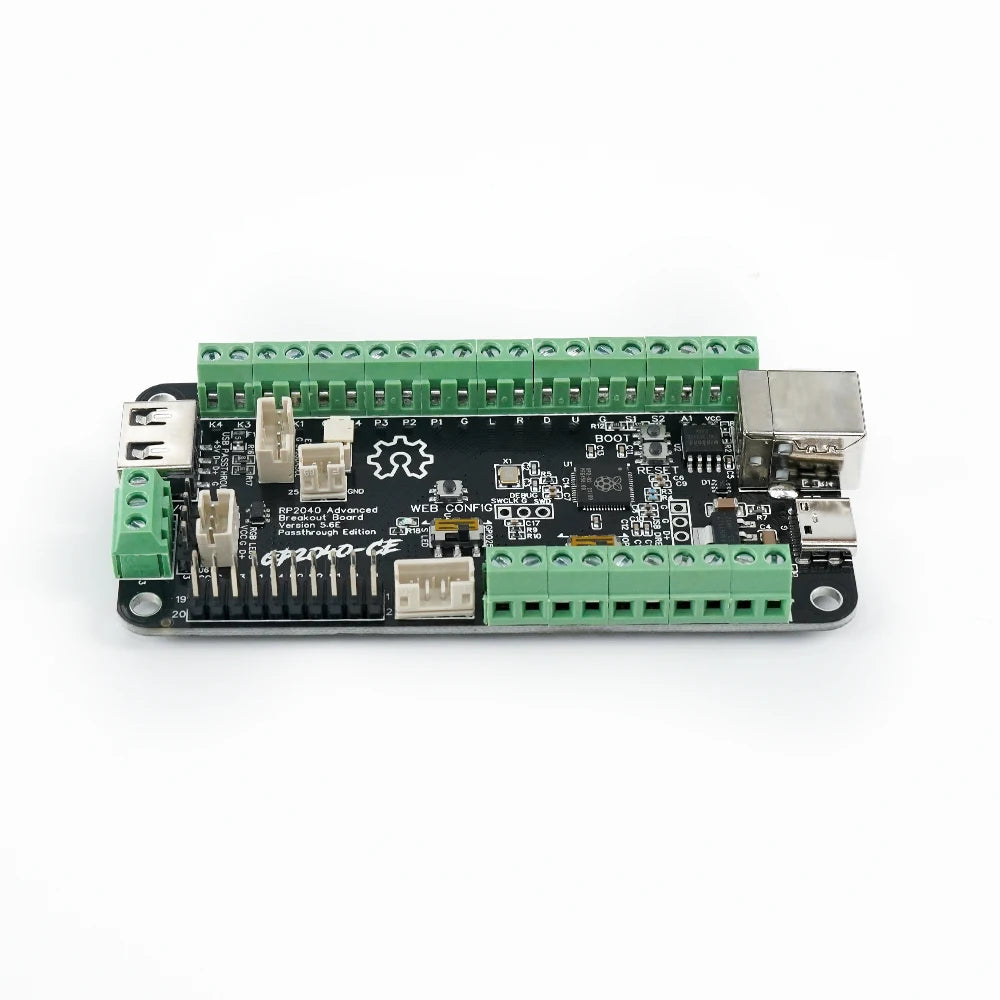

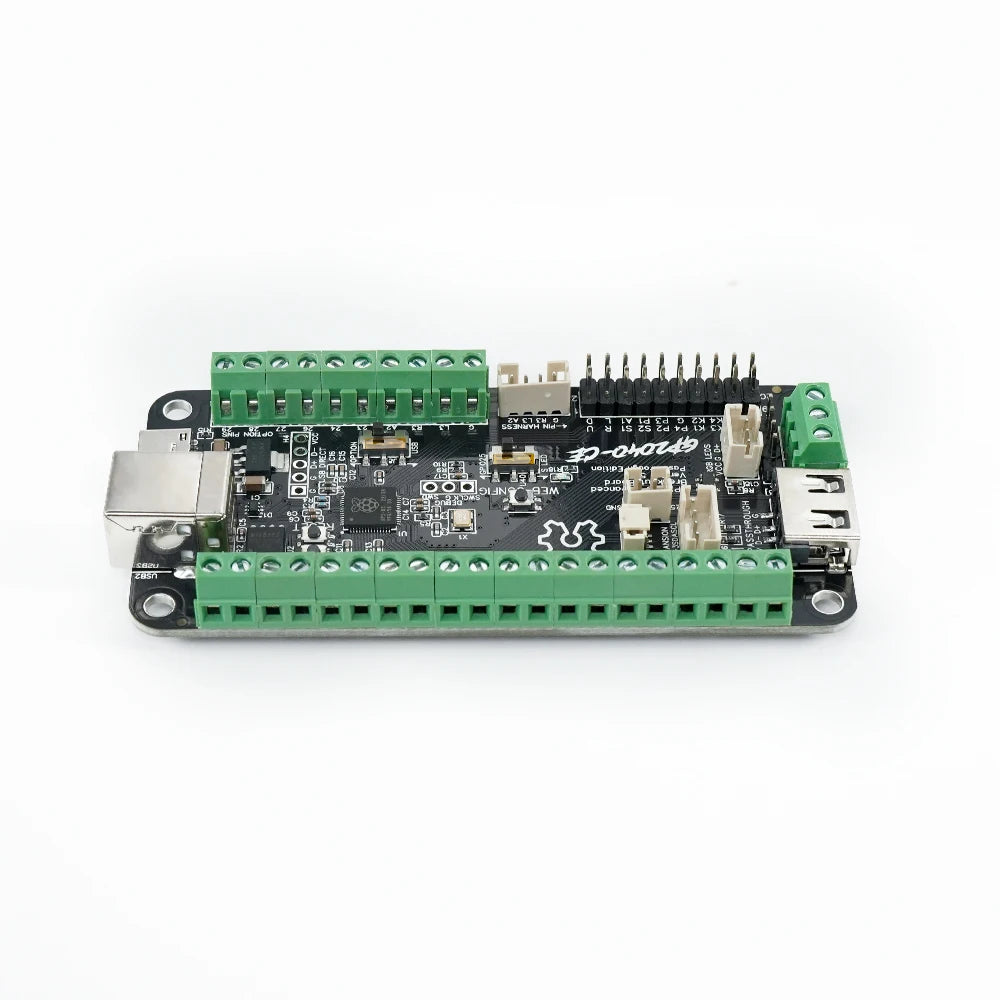

Rp2040 Advanced V5.6E USB Breakout Board Passthrough Edition Arcade Fight Stick Hitbox Buttons Style For PC/PS4/NS/PS5
Rp2040 Advanced V5.6E USB Breakout Board Passthrough Edition Arcade Fight Stick Hitbox Buttons Style For PC/PS4/NS/PS5
Couldn't load pickup availability
SPECIFICATIONS
Accessories Type: Motherboard
Brand Name: duelpad
Compatible Brand/Model: PC
Electric: No
Hign-concerned Chemical: None
Model Number: V5.6E Fighting Board
Origin: Mainland China
PC System: Windows 10
With USB: yes
is_customized: No

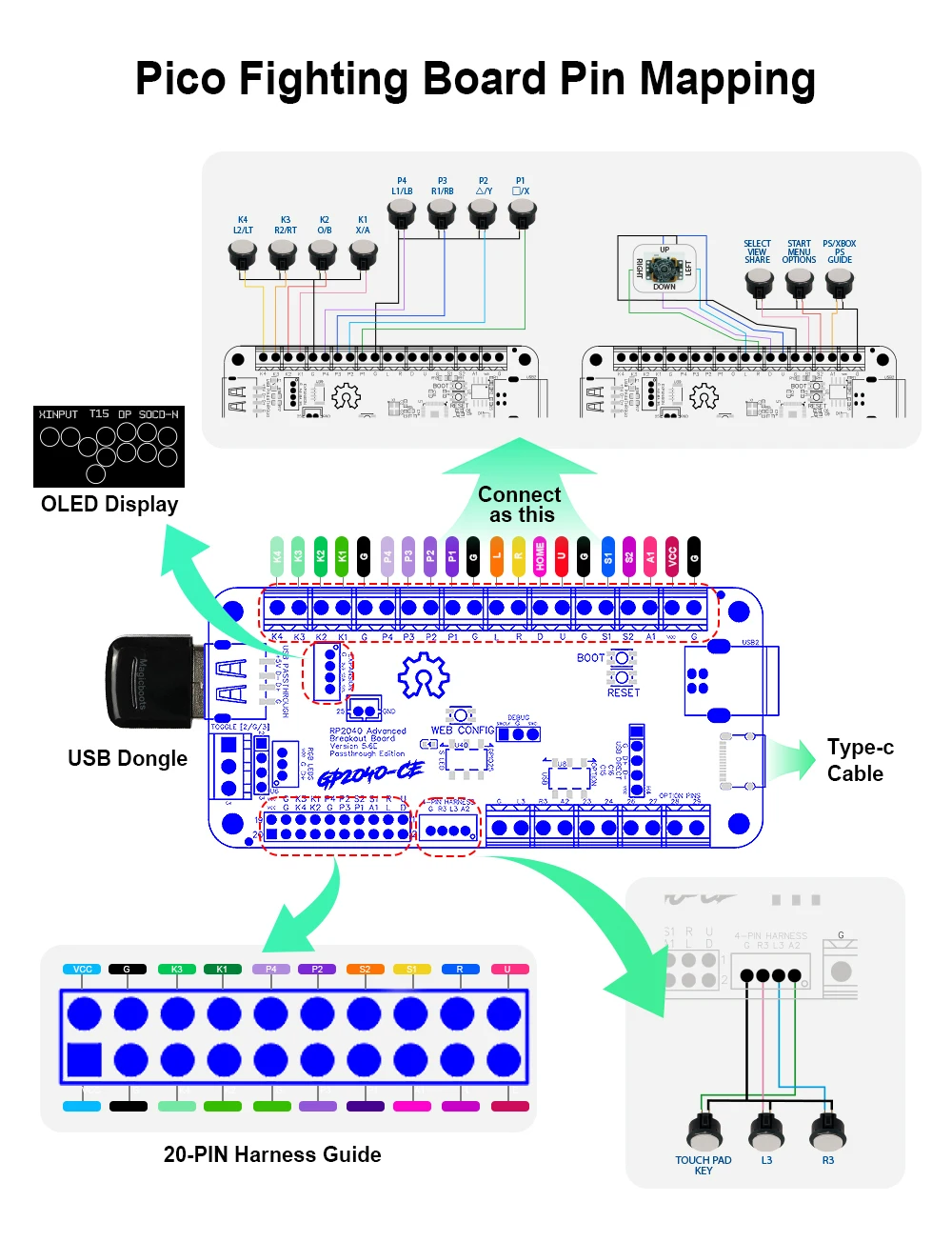

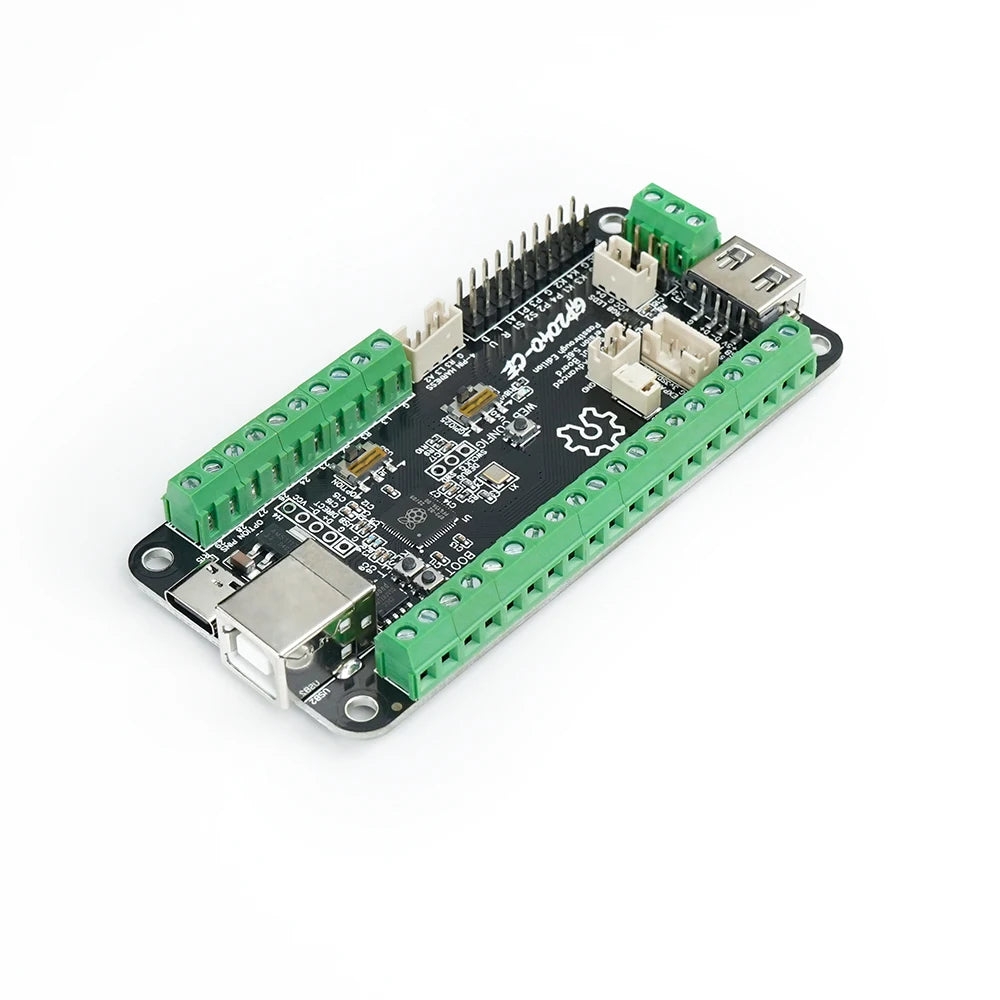

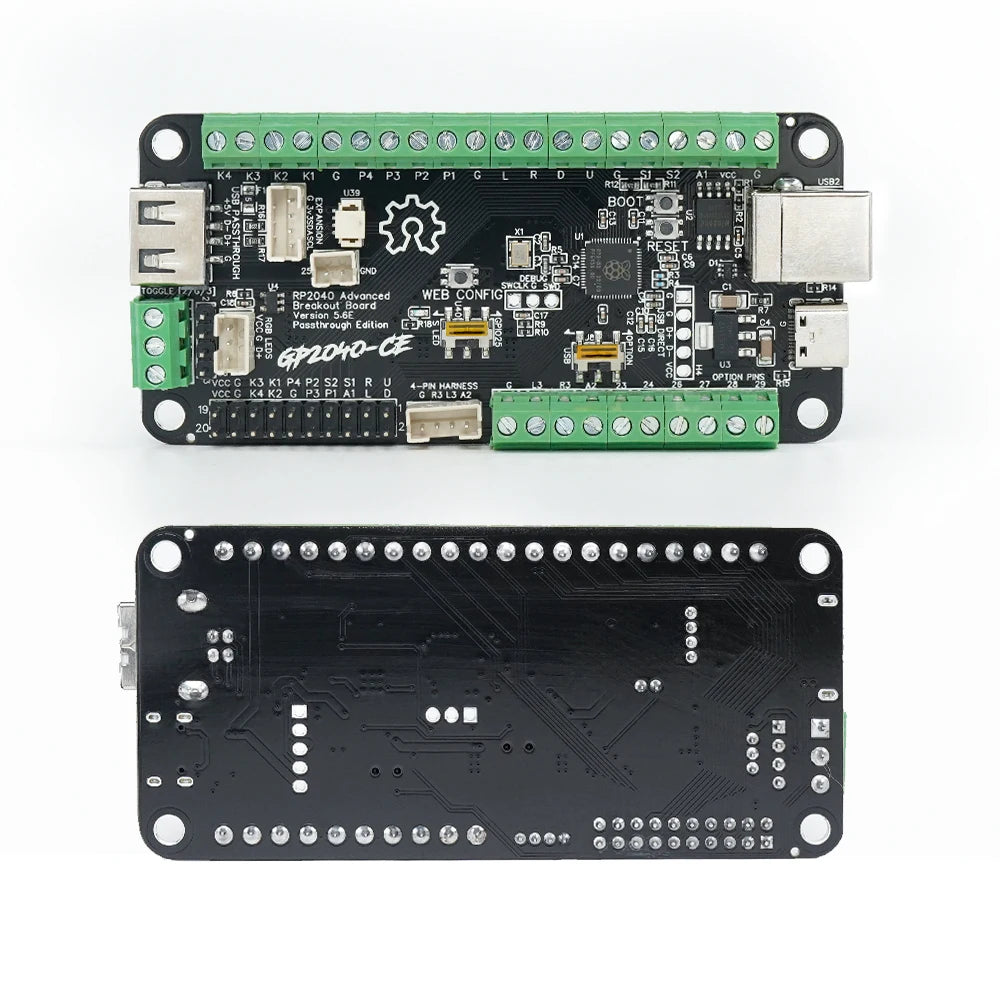

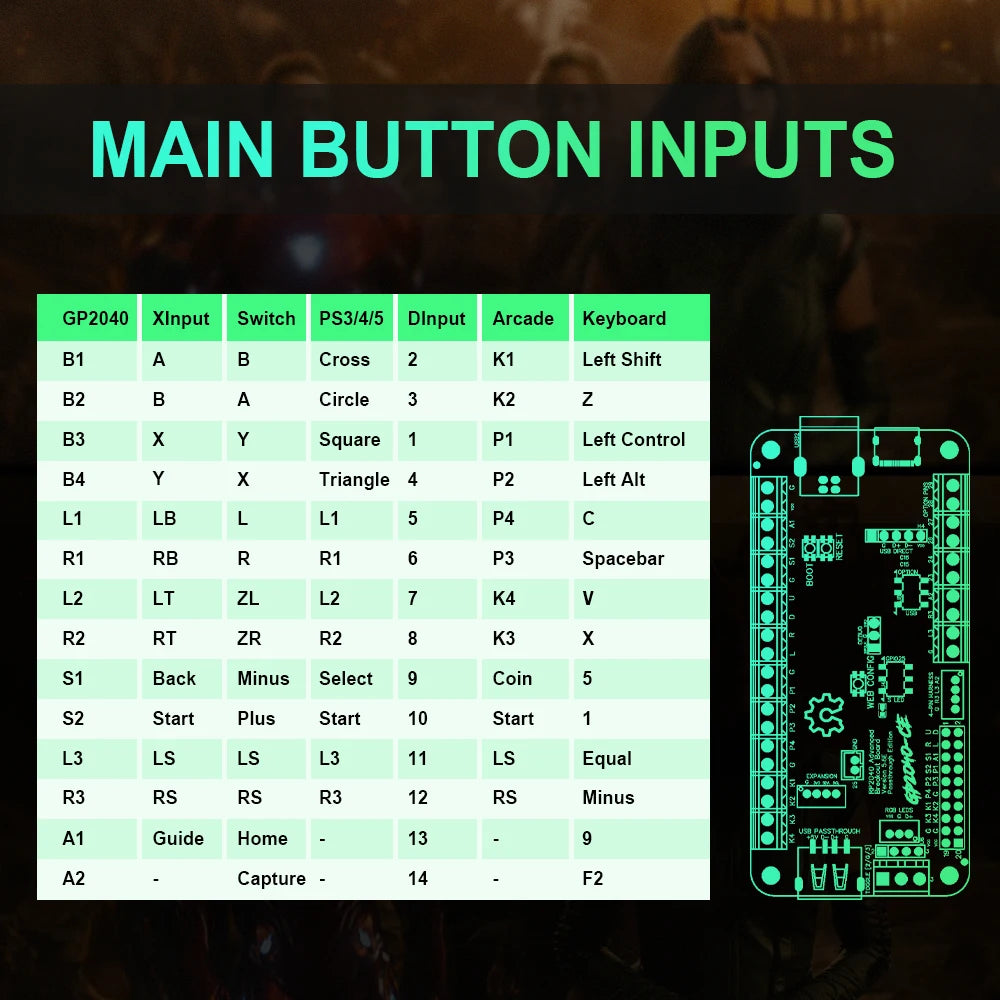

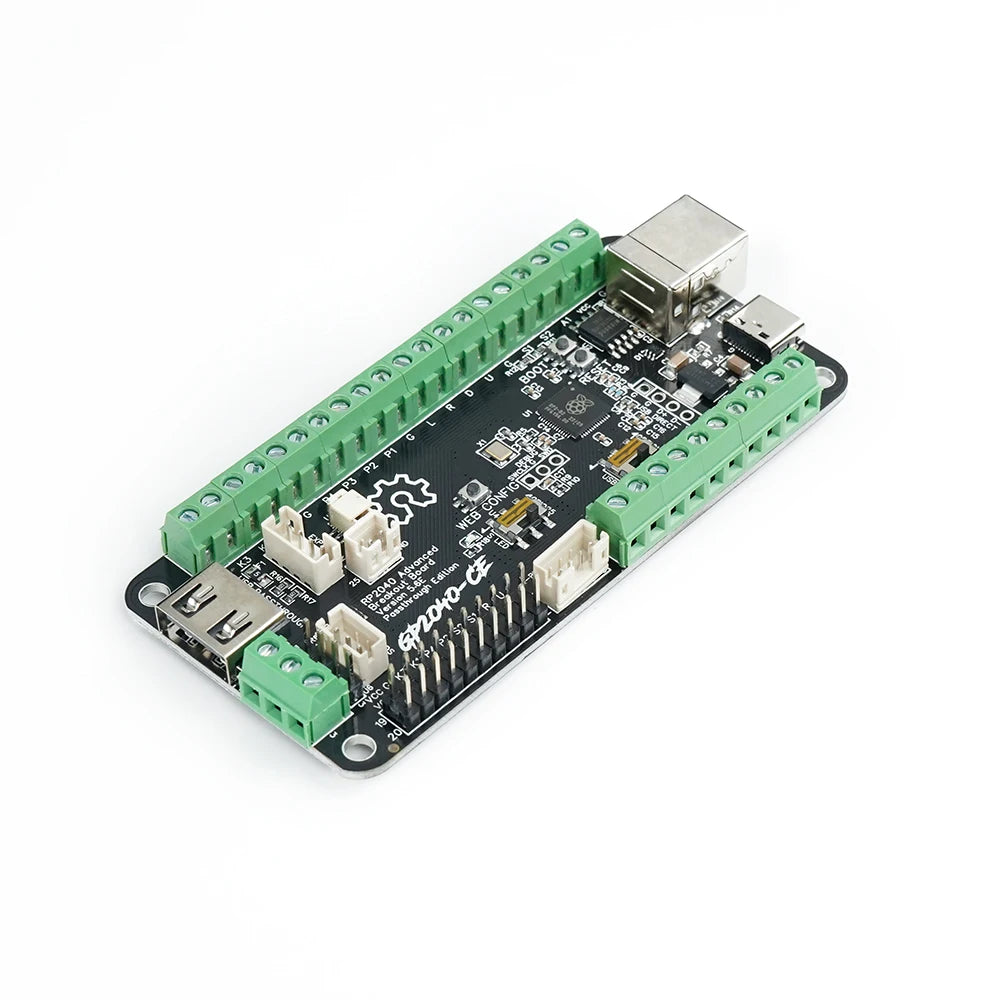

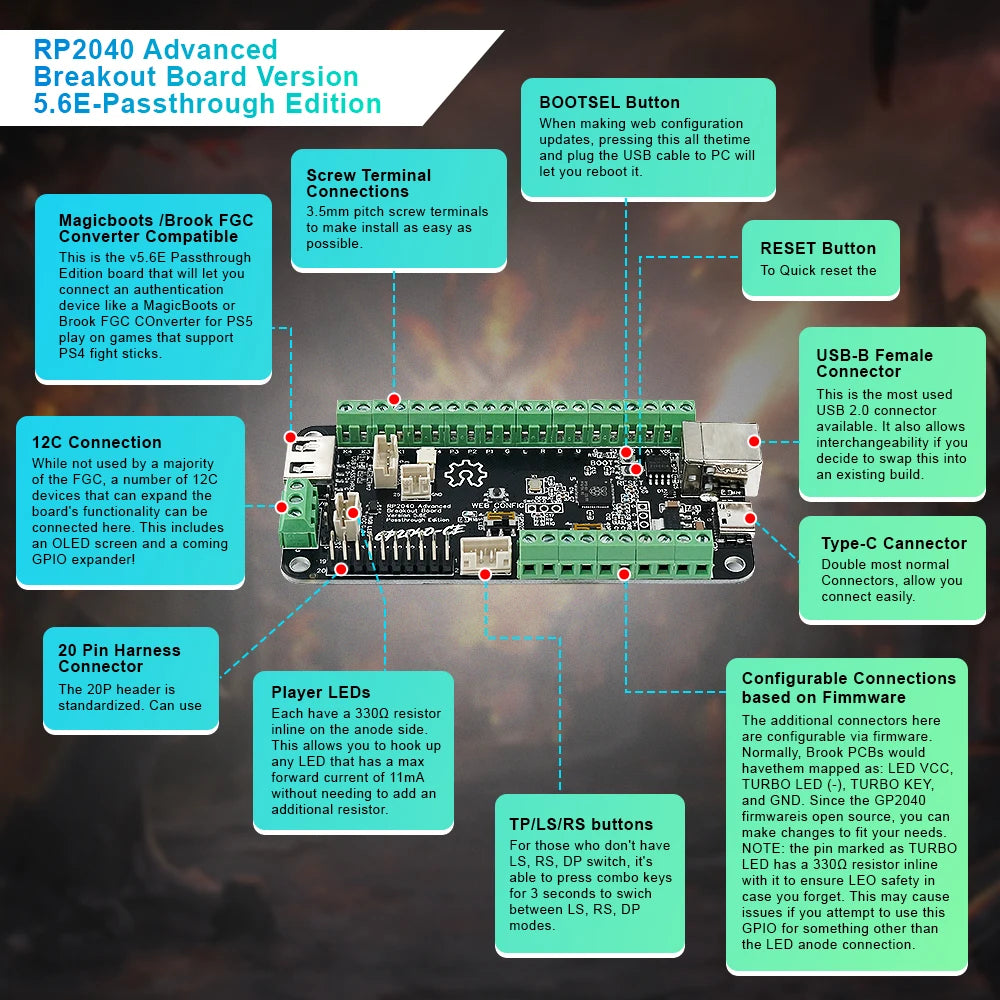

The Rp2040 Advanced Breakout Board is game controller with a built-in RP2040 chip, and its firmware is based on GP2040-CE (Community Edition). lt offers low latency, multi-platform compatibility, customizability, and many other rich features.

Info Link:
https://github.com/OpenStickCommunity/Hardware/tree/main/Boards/GP2040-CE%20Official%20Boards/RP2040%20Advanced%20Breakout%20Board/RP2040%20Advanced%20Breakout%20Board%20-%20Passthrough
Passthrough Port For ps4/ps5
https://gp2040-ce.info/faq/faq-ps4-ps5-compatibility

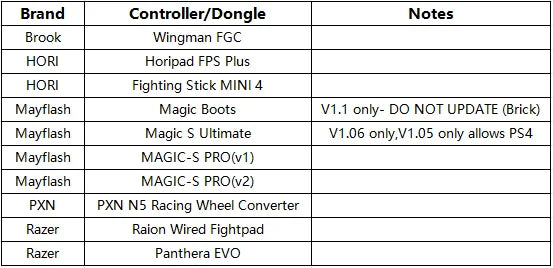

USB Passthrough Authentication Compatibility List(Here are just some of the devices listed, but they are not limited to these.)
NOTE: DS4, DS5, or clone controllers do not support authentication
Data source(https://github.com/InfraredAces/GP2040-CE-Compatibility-List)

Features:
•Select from 13 input modes including X-Input, Nintend Switch, PS4/5, Xbox One, D-Input, and Keyboard
•Input latency average of 0.76ms in Xinput and 0.91ms for Playstation 5.
•Multiple SOCD cleaning modes - Up Priority (a.k.a. Stickless), Neutral, and Second Input Priority.
•Left and Right stick emulation via D-pad inputs as well as dedicated toggle switches.
•Dual direction via D-pad + LS/RS.
•Reversed input via a button.
•Turbo and Turbo LED with selectable speed
•Per-button RGB LED support.
•PWM Player indicator LED support (XInput only).
•Multiple LED profiles support.
•Support for 128x64 monochrome I2C displays - SSD1306, SH1106, and SH1107 compatible.
•Custom startup splash screen and easy image upload via web configuration.
•Support for passive buzzer speaker (3v or 5v).
•Built-in, embedded web configuration - No download required!
Quick Guide
Input mode
To select input mode, hold one of the following buttons when plugging in yourcontroller:
• A-PS3/DInput
• B-Nintend Switch
• X-PC/XInput
• Y-PS4
D-Pad Modes
To select the active d-pad mode, while the controller is plugged in press
• SELECT + START + DOWN - Normal D-pad operation
• SELECT + START + LEFT Left analog stick emulation
• SELECT + START + RIGHT - Right analog stick emulation
SOCD Modes
To select the active SOCD mode, while the controller is plugged in press:
• HOME + START + DOWN Neutral(U+D=N, L+R=N)
• HOME + START + UP Up Priority (U+D=U, L+R=N)
• HOME + START + LEFT - Last Input Priority
RGB LEDS
Supports WS2812 and similar RGB LEDs. To change LED settings,press:
1.SELECT + START + X Next Animation
2.SELECT + START + A Previous Animation
3.SELECT + START + Y Brightness Up
4.SELECT + START + B - Brightness Down
5.SELECT + START + R1 LED Parameter Up
6.SELECT + START + R2 - LED Parameter Down
7.SELECT + START + L1 Pressed Parameter Up
8.SELECT + START + L2 Pressed Parameter Down
Joystick Direction Switch Mode
Key combination to toggle when connecting a device
• HOME + START + RIGHT = Up and down button swap
Batter Mode(Support OLED Display)
Press the TURBO key and press the key to trigger the switch
• Batter can be set to (X/Y/R1/L1 A/B/R2/L2)
• speed is adjusted 1-60 times per second (uniform adjustment)
Turn on/off Batter mode :Hold TURBO+(X/Y/R1/L1 A/B/R2/L2)
• Hold TURBO + UP to increase speed
• Hold TURBO + DOWN to slow down the speed
• The speed has a memory function, but the batter status is cleared when the connection is disconnected
Firmware Updates
The hitbox keyboard comes preinstalled with the latest GP2040-CE firmware. lf you'd like to update to the latest firmware, perform the following steps:
1.Download the latest version of GP2040-CE for the Pico Fighting Board from https://github.com/OpenStickCommunity/GP2040-CE
2.Unplug your hitbox from the computer.
3.Press and hold the white boot button on the Pico while plugging into the computer.
4.Copy the GP2040-Pico Fighting Board. uf2 file to the RPI-RP2 drive that appeared when connecting the PC
5.Once the update is complete the hitbox will restart and again be detected as a controller.
Advanced Configuration
The GP2040 firmware has a built-in configuration app which runs from a local webserver on the Pico. To access the configuration app from a computer
1.Hold START/web config button while plugging the controller into a computer.
2.Open a browser and navigate to http://192.168.7.1
You now have access to adjust controller settings, configure RGB LEDs, reset settings, etc
Links
• GP20400-CE Firmware -https://github.com/OpenStickCommunity/GP2040-CE
• Webserver Usage Guide- https://gp2040.info/#/usage
