Multi JAMMA Switcher, Multiple Game PCB Board, Toggle Switch, Remote Control, CGA VGA Arcade Machine, Audio Controller, 2 in 1

Name: Multi JAMMA Switcher, Multiple Game PCB Board, Toggle Switch, Remote Control, CGA VGA Arcade Machine, Audio Controller, 2 in 1
Brand: bruce1arcadeservice
SKU: 1005004754613754-Default Title
Price: 95.26 USD
Availability: InStock

$95.26 USD

~~$0.00 USD~~ $95.26 USD

Sale Sold out

Tax included. Shipping calculated at checkout.

Default Title Default Title

Product variants

Quantity

SPECIFICATIONS

Age: >6 Years

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Model Number: 2 in 1

Origin: Mainland China

Type: Grand Slam

Introduction:

Now you can plug 2 different Jamma PCB into one cabinet and select the game you want to play with the press of a switch control .To install just plug the PCB into your existing Jamma harness. It install easily and working perfect.

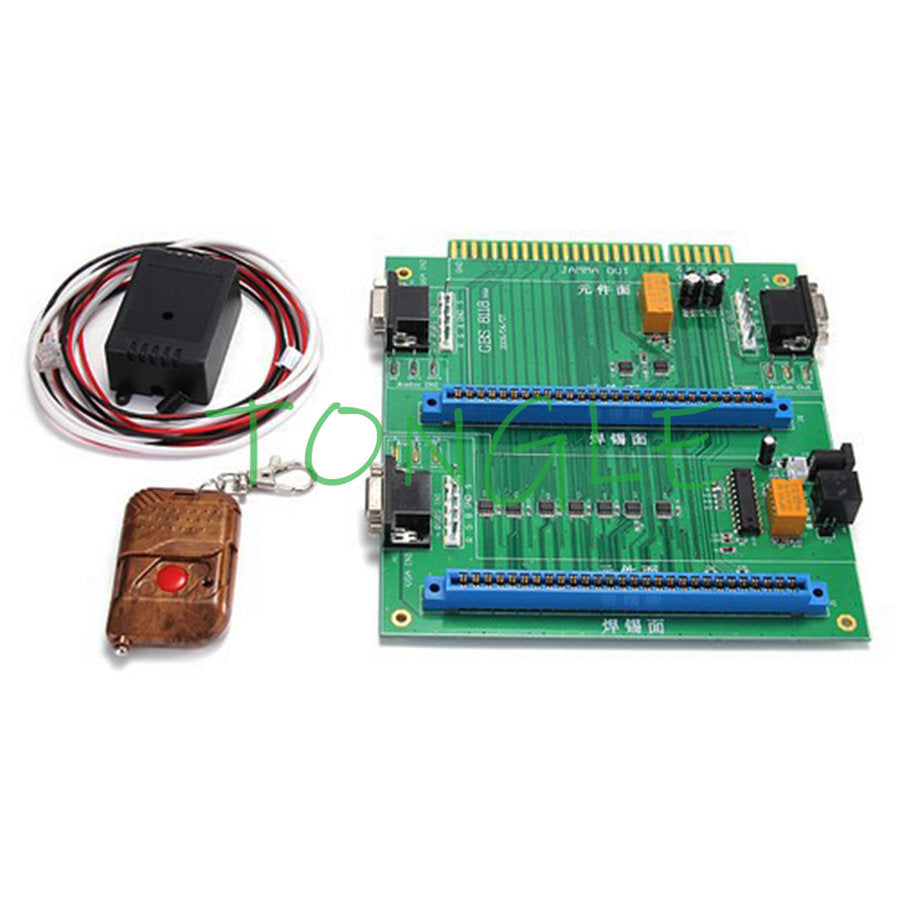

Install two different JAMMA (or non-JAMMA with the use of a JAMMA Adapter) PCBs into a single JAMMA cabinet with ease! This 2-in-1 Multi JAMMA switcher board is simple to install and works with just a quick press of the button. Included is a wired switch function.

This provides seamless quick switching between the two installed boards. Also this is a must if installing in a public game room (so the customer does not have to wait for the second game board to power on and test itself if selected...the game would already be up and ready to go).

Feature:

All of our items are Brand New
Multiple input options (Inputs through JAMMA slots, VGA connections, RGB-S Connections, and L/R Audio inputs)
On initial power up, slot 1 automatically is enabled and plays.
Both slots power on together
Switcher routes +5VDC, +12VDC, and -5VDC
Switcher routes SERVICE & TEST button functions, plus up to 4 shooter buttons per player
Setup is quick and easy

Setup Introduction:

Install the 2-in-1 Multi JAMMA Switcher PCB into your JAMMA ready arcade cabinet (on cabinet floor is ideal if possible)
Connect the 2-in-1 Multi JAMMA Switcher PCB into your JAMMA cabinets connector

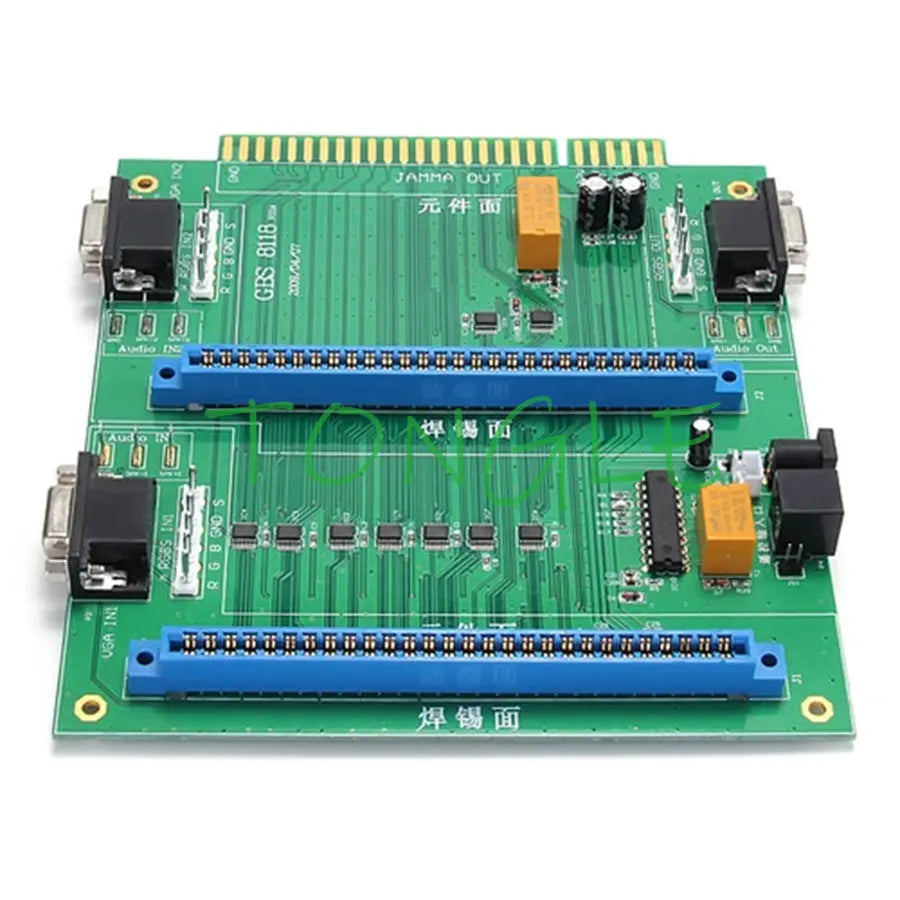

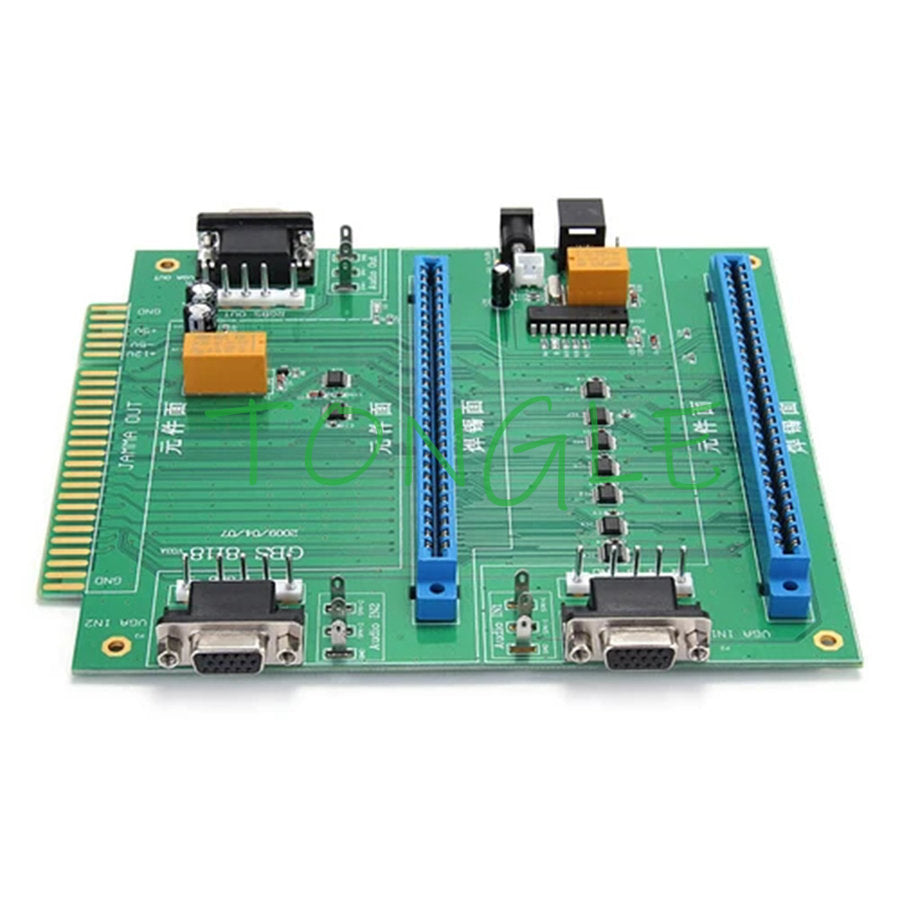

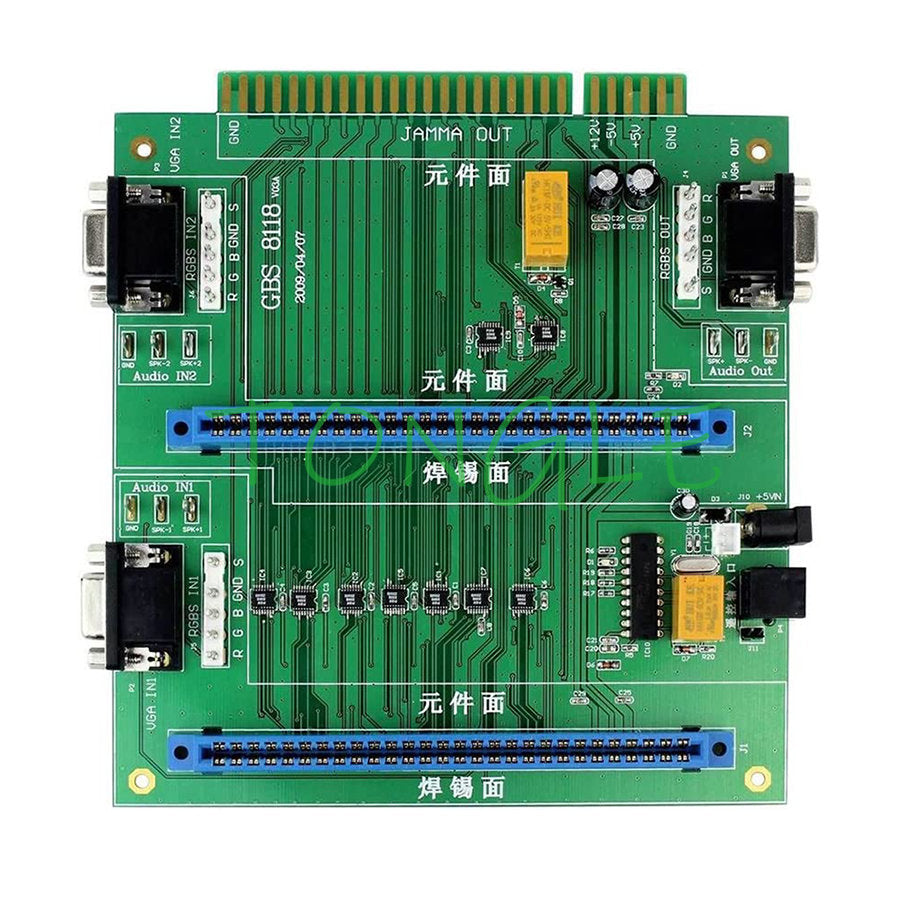

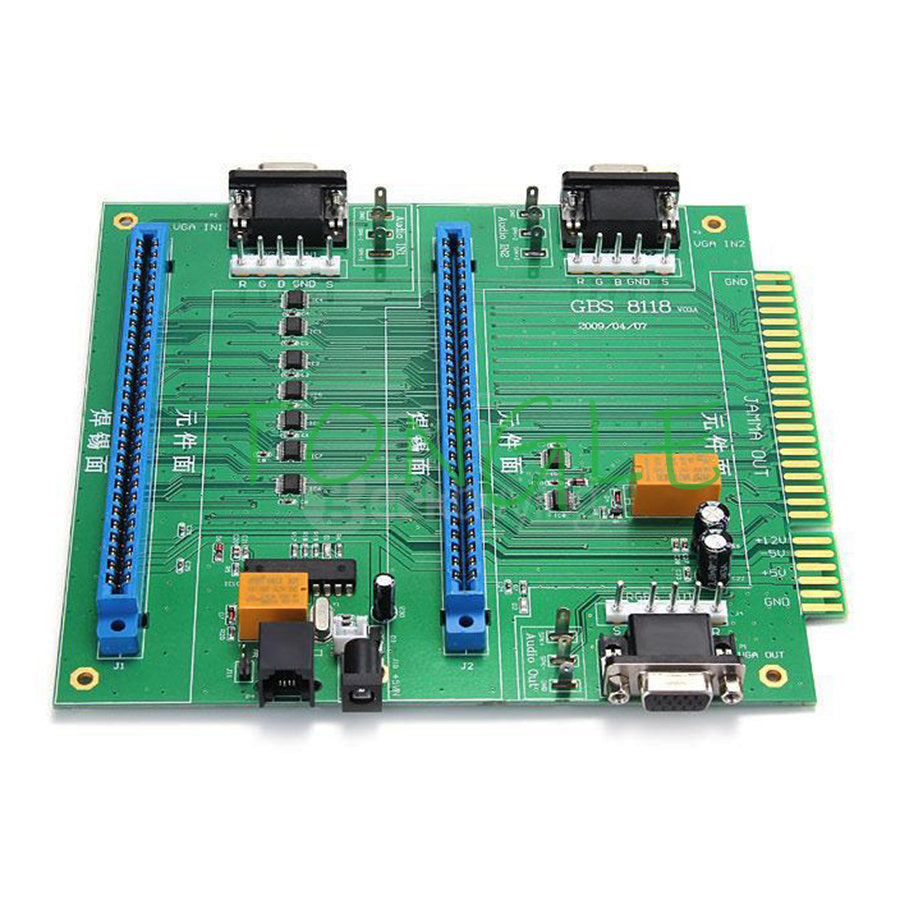

Install your other JAMMA PCB (or non-JAMMA PCB with the use of a JAMMA Adapter) into one of the open 2-in-1 MultiJAMMA Switcher PCB slots (Slot farthest from the JAMMA connection is slot 1 / closest is slot 2). When plugging in the Jamma boards the front of the board (Front has the monitor port on it) goes to the front of the switch, the front of the switch has the two VGA input ports.
Power on your cabinet and enjoy

Important Reminder:

Technical Notes: This switcher will not switch the video with the 400-in-1 Pandora V2 PCB board using VGA video. In order to work with this board the VGA video need to be manually switched using a VGA switch box. Short of the video needing to be switch on a separate switch all other functions will switch properly. If you are using a CGA tube monitor then there is no issues.

Monitor: If you are using a CGA monitor then you simply wire the monitor off of the Jamma harness, If you are using a VGA monitor then you have to set your Jamma boards to VGA then plug both of your Jamma boards VGA ports from the boards to the VGA input of the switch using a male to male VGA cord.
